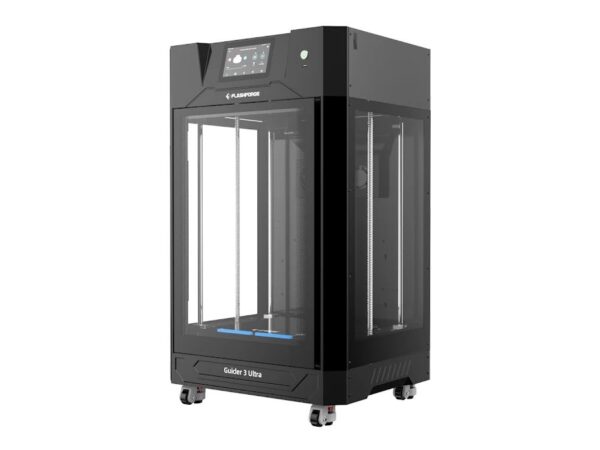

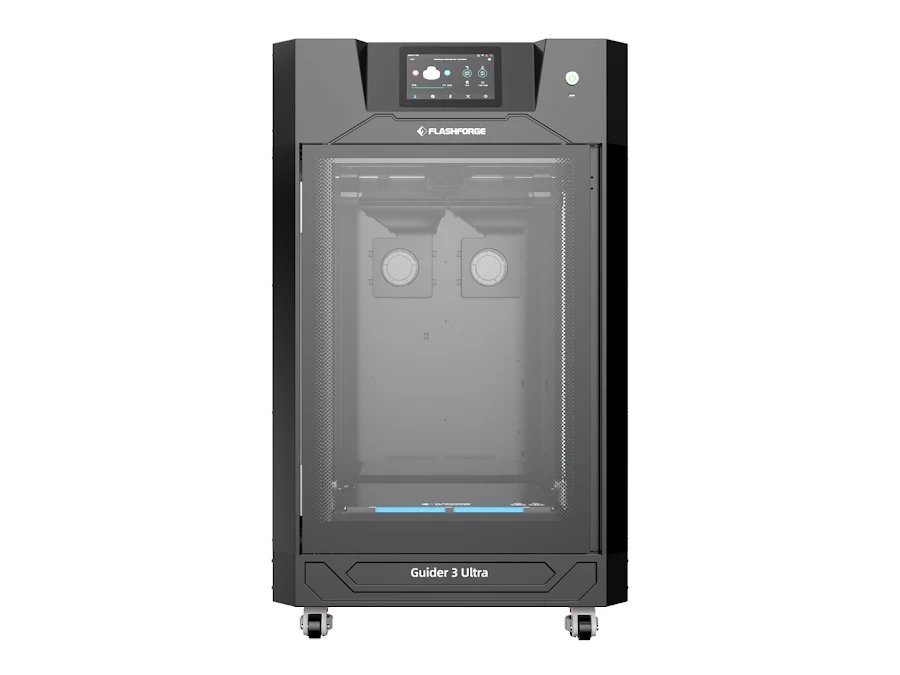

Flashforge Guider 3 Ultra

The FlashForge Guider 3 Ultra is an ideal choice for commercial-grade additive manufacturing, offering reliable and efficient performance. Thanks to its CoreXY design, this 3D printer combines FlashForge’s renowned technology with high speed printing, high fidelity, and quiet operation in one convenient package. Whether you need high-precision prints or silent printing, the FlashForge Guider 3 Ultra is the perfect all-in-one solution.

Dual Extrusion High speed & quiet printing
Built-in filament drying chamber & Hepa 13 air filtration
Flexible and removable steel plate

Features
The FlashForge Guider 3 Ultra offers unparalleled speed and efficiency for your business needs with its CoreXY design, combining the best of FlashForge‘s renowned technology.

High speed – 500mm/s print speed.
Extremely sturdy z-axis guides and ball screws for the stability of large models and long print jobs
Built-in filament drying chamber & Hepa 13 air filtration system
High-temperature extruder 320C
Quick release nozzle
Passive filament storage chambers

Specifications
Printing
Printing Precision:  ±0.15mm or 0.002mm/mm

Position Precision:  X/Y axis: 0.011 mm;  Z axis; 0.0025 mm

Layer Thickness:  0.05-0.4mm

Build Volume: 330(L) x 330(W) x 600(H) mm

Nozzle Diameter:  0.4 mm Standard (Optional 0.6 mm/0.8 mm)

Maximum Extruder Temperature: 350°C (608°F)

Adjustable Heated Build Plate Temperature:  Up to 110°C (230°F)

Filament Diameter:  1.75 mm

Filament Compatibility:  PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA

Print Speed: 10-500 mm/s

Mechanical & Dimensions
Number of Extruders: One

Printer Dimensions: 496 (L) x 436 (W) x 696 (H) mm (19.5 x 17 x 27 in)

Packaging Dimensions: 585 (L) x 530 W) x 760 (H) mm (23 x 21 x 30 in)

Net Weight:  60 LBS (27 KG)
Electrical
Power Supply:  AC100-240V / DC24V / 20.8A, 650W

HD Touch Screen:  4.3 inch

Connectivity:  USB Cable, USB Stick, Wi-Fi, Ethernet

Certification:  CE / FCC / RoHS

Software
Software: FlashPrint

Compatible Slicing Software: Slic3r, Skeinforge, Cura (Require to set up), Simplify3D (Coming Soon)

File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG

File Output Format: GX / G / gcode
