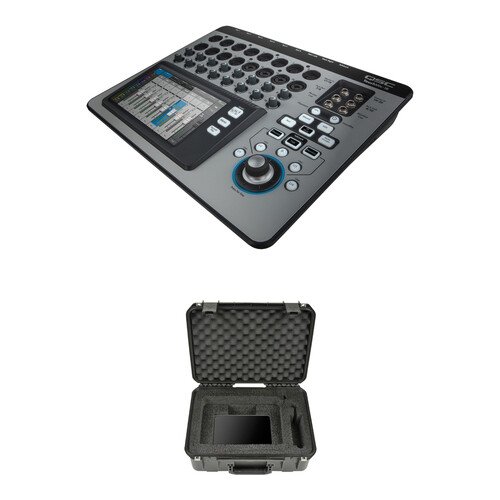

QSC TouchMix-16 Compact Digital Mixer with Watertight Road Case Kit

The TouchMix-16 Compact Digital Mixer with Watertight Road Case Kit from B&H comes with everything you need to get started building your live sound reinforcement rig. It comes with the TouchMix-16 Compact Digital Mixer along with a custom-fit watertight road case kit to protect your valuable gear from the rigors of the road.

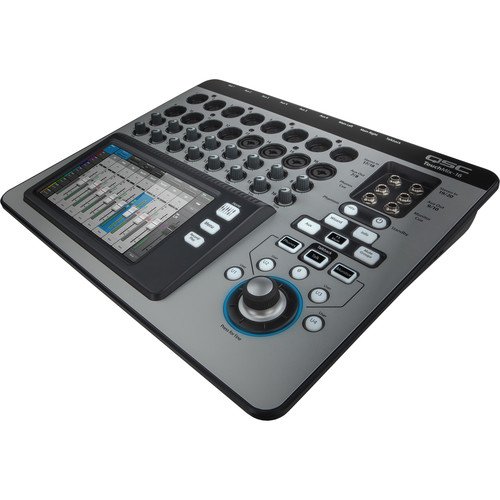

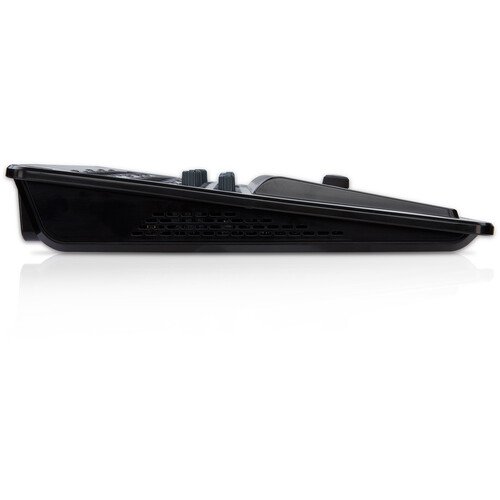

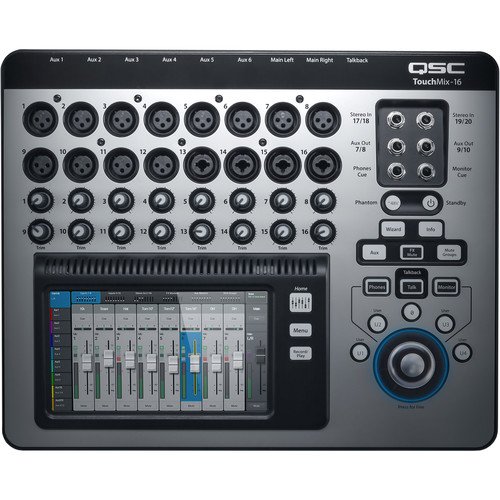

QSC TouchMix-16 Compact Digital Mixer with Touchscreen

The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16’s DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.
The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

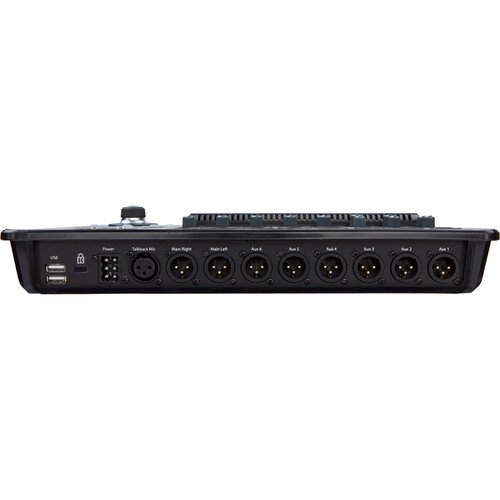

Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)

TRS Aux outs drive wired In Ear Monitors (IEM) directly

4-band full parametric EQ, variable high-pass and low-pass filters on all input channels

Gate and compressor on all input channels

4 stereo DSP effects plus a pitch corrector

1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs

8 DCA and 8 Mute groups

Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation

Wizards, info and preset libraries assist you with channel setup, effects selection, and more

Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair

Remote control via mobile devices. Wi-Fi interface included

UPC: 684284061546

SKB iSeries Watertight TouchMix Case

The iSeries Watertight TouchMix Case from SKB is designed to provide watertight protection for QSC’s TouchMix-8 and -16 digital mixers. A foam insert allows accommodation of either model, while a custom cutout provides a space for the power supply. The case can even store a standard iPad or iPad mini.

Custom-cut PE foam to fit the QSC TouchMix-8

Removable foam section to fit the TouchMix-16

Room for an iPad (standard or mini size) and power supply

Polypropylene copolymer resin

UV, solvent, corrosion and fungus resistant (MIL-STD-810F)

Complete gasket seal makes these cases absolutely watertight (MIL-STD-C-4150J)

Automatic ambient pressure equalization value (MIL-STD-648C & IP67)

Molded-in hinges

Rubber over-molded cushion grip handle

Locking loops for a user-supplied lock

Patented “trigger release” latch system
