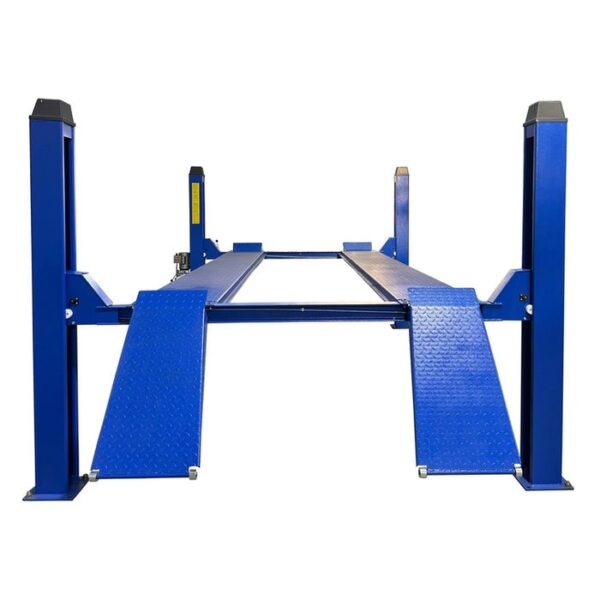

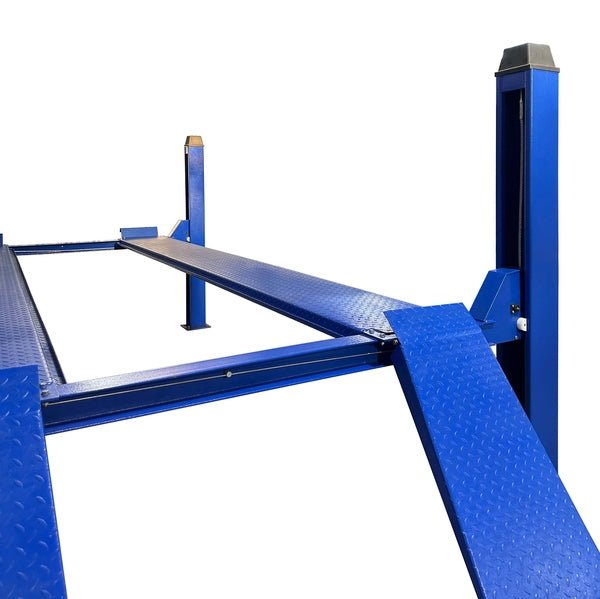

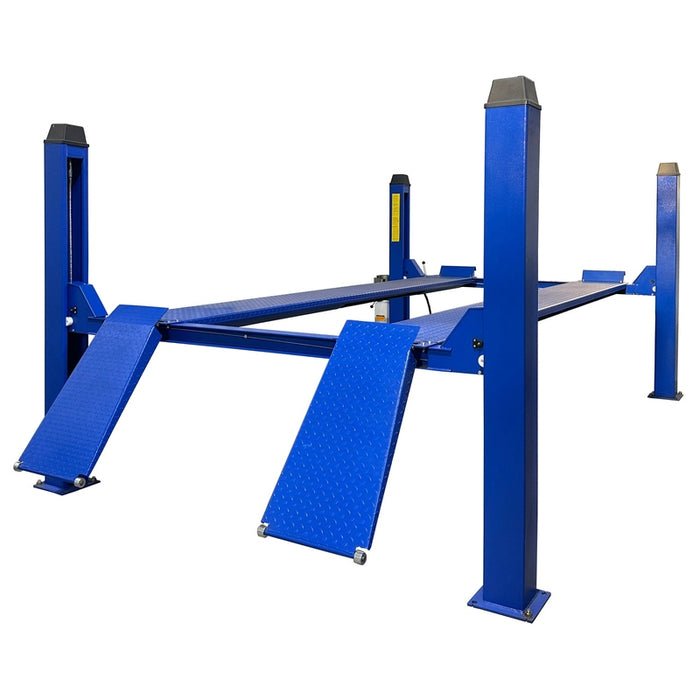

Tuxedo FP12K-K 12,000 lb Four Post Lift – Cable Driven

Tuxedo 12,000 lb Four Post Lift – Cable Driven
–

*Jack sold separately

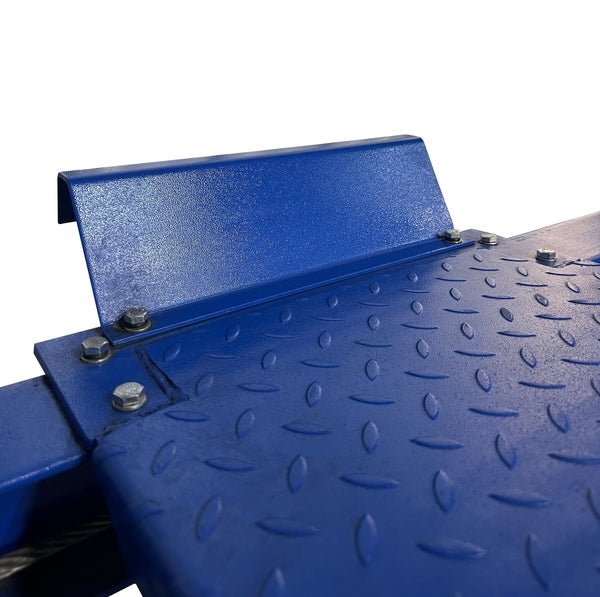

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.

Features
–

12,000 lbs Capacity
Cable Driven
176 max wheelbase

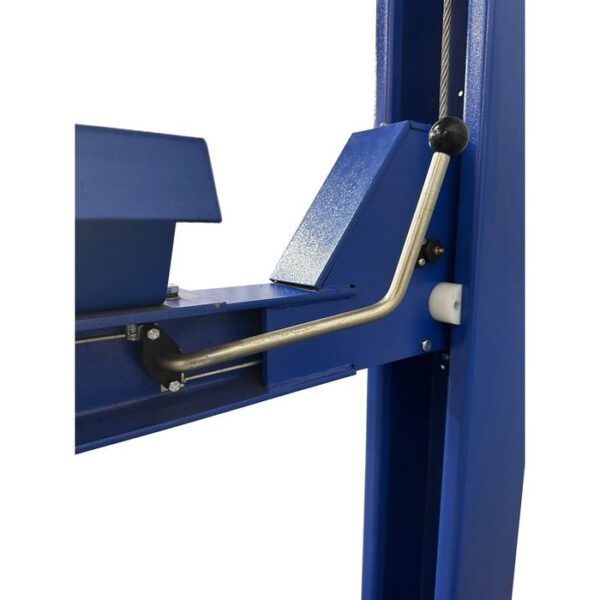

Single Point Manual Lock Release

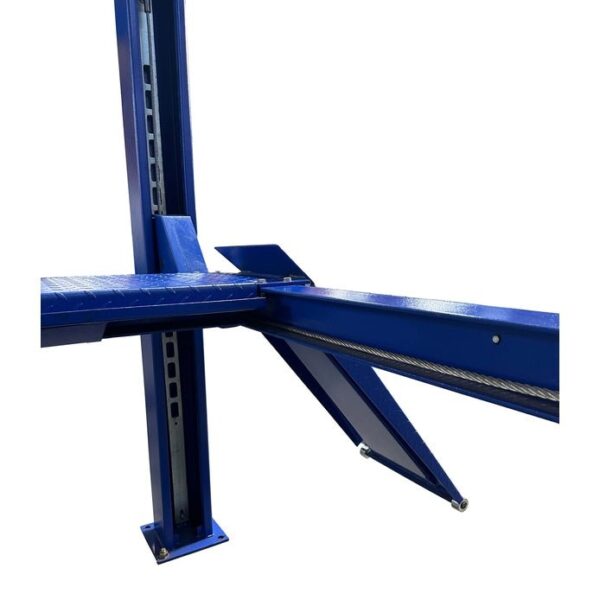

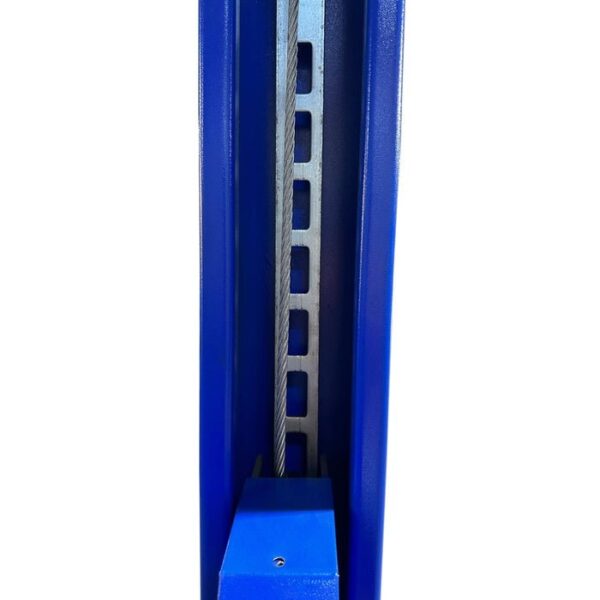

Adjustable Locking Positions

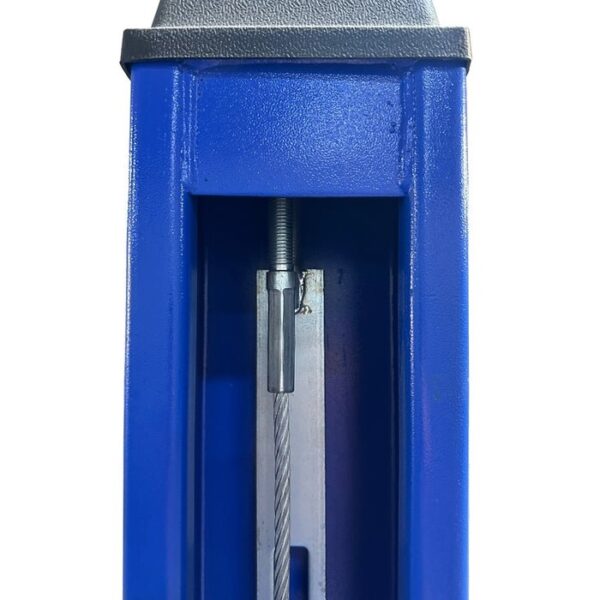

Slack Cable Safety
No Overhead Obstructions

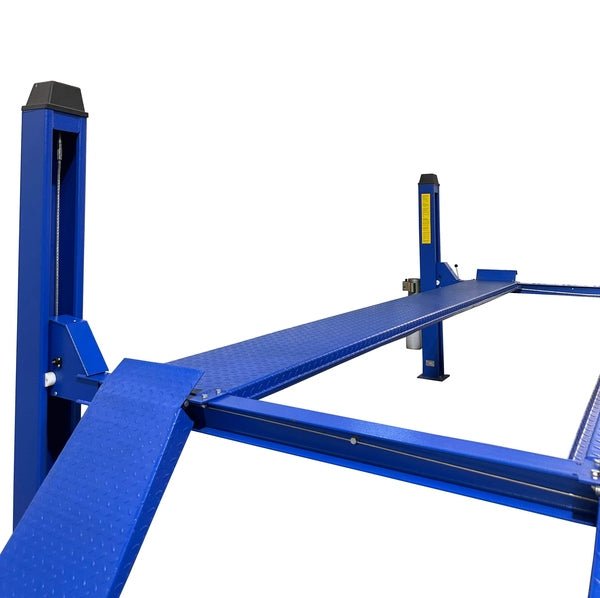

Powder Coat Finish

Specifications
–

Lift Model
FP12K-K

Capacity
12,000 lbs.

Overall Length w/Ramp
232-1/2″

Overall Width(Without Power Unit)
123″

Overall Width (With Power Unit)
134″

Overall Height
84″

Max Rise Height
67-1/2″

Min Height
7″

Width Between Posts
105″

Length Between Posts
177″

Width Between Runways
36-1/2″

Width Of Runways
19″

Max Wheelbase
167″

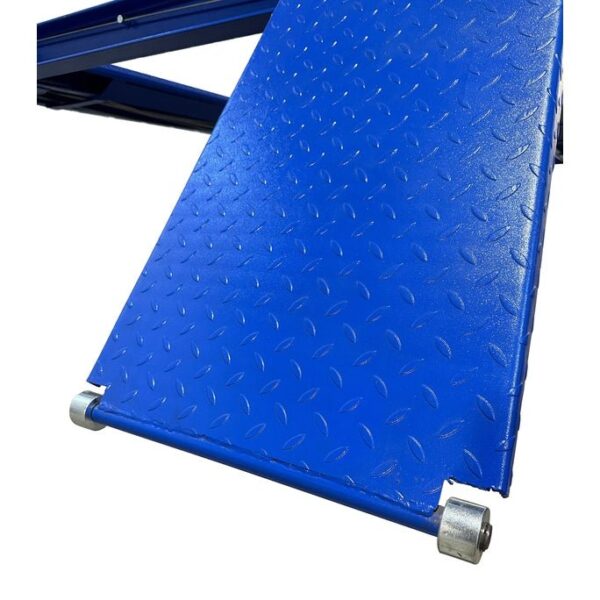

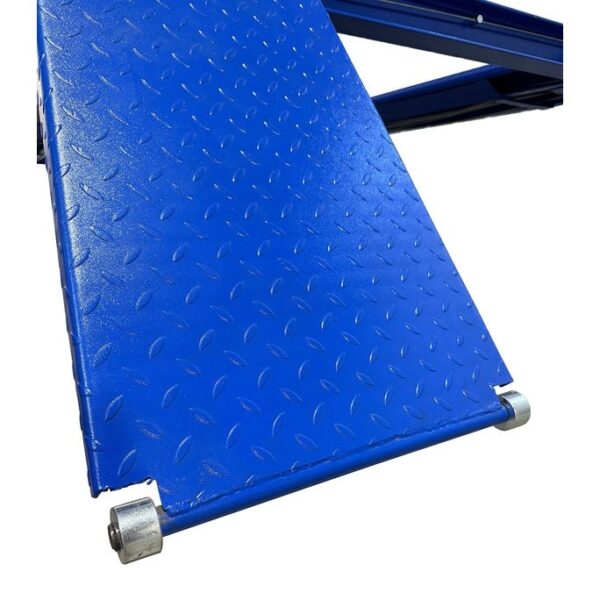

Ramp Length
35″

Max. Clearance Under Runway
63-1/4″

Drive-Thru Clearance
87-1/2″

Base Plate
11″ X 11″

Power Requirement
220V – 20 Amp – 1PH

Ship Weight
2,255 lbs.

Min Bay Size
15″ x 23″
